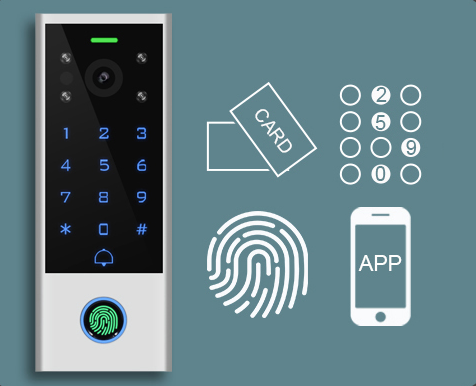

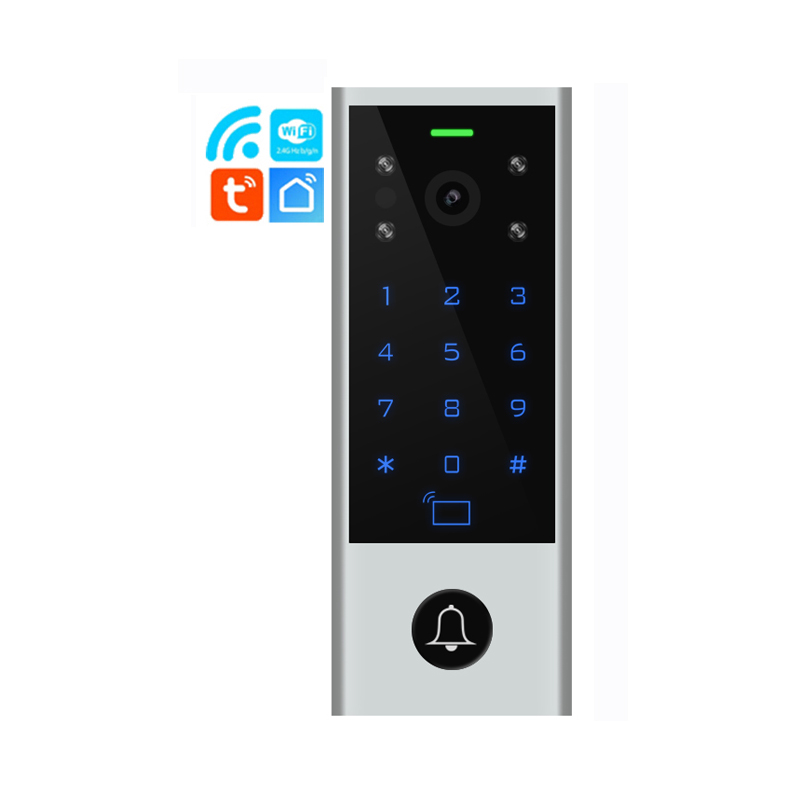

IP65 Waterproof WiFi Video Intercom System for Home

Video Intercom

Network

2.4G WiFi connection

Pixel

2.0Mpx (1080P)

Visual Angle

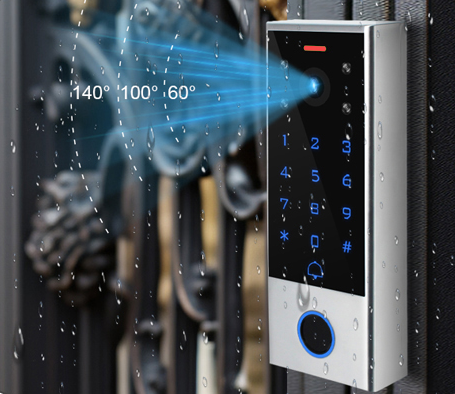

Horizontal   140° wide angle

Night Vision

IR-CUT (Colorful at daytime, black and white at night)

Extended Memory

TF card with unlimited capacity

Intercom

Full duplex voice intercom

Other Functions

Motion detection; Playback; Take picture/video; Unlock remotely

Access Control

User Capacity

Common User
Visitor User
Panic User

1000(100 fingerprints + 900 card&PINs)

988

10
2

PIN Length

4~6 digits

Proximity Card Reader
Radio Technlogy
Read Range

EM or Mifare
125KHz/13.56MHz
2~6cm

Wiring Connections

Relay output, exit button, alarm, door contact, Wiegand input/output

Relay

Adjustable Relay Output Time

Lock Output Load

One (NO, NC, Common)

0~99 Seconds (5 seconds default)

2 Amp Maximum

Wiegand   Interface


PIN Output

EM card version: Wiegand 26~44 bits input & output (Factory default: Wiegand 26bits)

Mifare card version:Wiegand 26~44 bits input & output (Factory default: Wiegand 34bits)

4 bits,8bits (ASCII),10 digits Virtual Number(Factory default:4bits)

Electric

Operating Voltage

Idle Current
Active Current

DC 12V

≤ 150mA
≤ 250mA

Environment

Operating Temperature

Operating Humidity

Outdoor(IP65)

-20°C ~ 60°C (-4°F ~ 140°F)

0%RH ~ 90%RH

Physical

Color

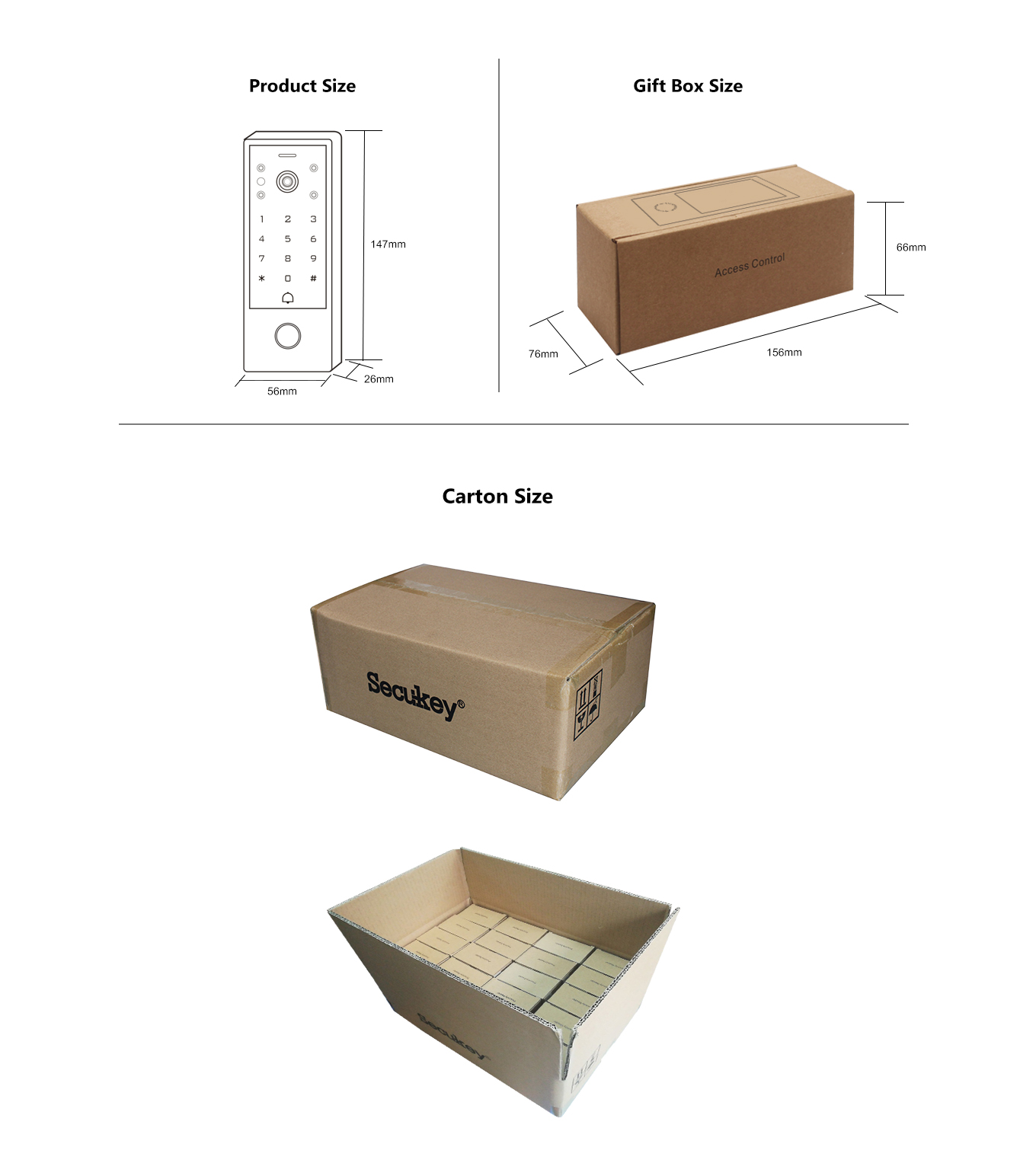

Dimensions

Unit Weight

Shipping Weight

Zinc-Alloy

Sliver & Black

L147 x W56 x H26(mm)

470g

570g
