XK10-R
Ultra-Slim Wiegand Keypad Reader - EM/HID/Mifare, IP67 Metal
Waterproof, conforms to IP67
Metal Case, anti-vandal
Wiegand 26~44, 56, 58 bits output
Programmable Keypad Transmission: 4 bits, 8bits or virtual card number format
Card Type: 125KHz Hid & EM cards, 13.56MHz NXP Mifare, Mifare Plus, DesFire, Mifare Pro, Mifare UltraLight, Mifare Class 4K, NFC and CPU cards
Reading range: 1~4cm
External LED Control & External Buzzer Control
Sales Inquiry
What is the XK10-R slim Wiegand keypad reader?
XK8-R is a Wiegand output keypad, with integrated proximity reader.
It can read 125KHz EM & HID cards and 13.56MHz Mifare Cards.
Because of waterproof, it can be mounted either indoor or outdoor in harsh environments.
It can read 125KHz EM & HID cards and 13.56MHz Mifare Cards.
Because of waterproof, it can be mounted either indoor or outdoor in harsh environments.
3 in 1 Universal Keypa
Identifies 125KHz EM+HID &
13.56MHz Mifare Card
Manually programmable
Wiegand format (26~44, 56,
58bits)
Wiegand format (26~44, 56,
58bits)
Keypad Transmission format:
4bits (8bits and 10bits virtual
card number can be set)
4bits (8bits and 10bits virtual
card number can be set)

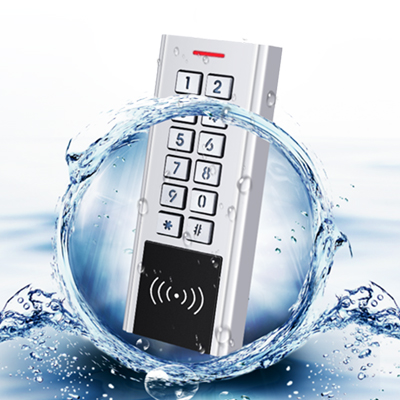

Waterproof, IP67
Metal Case, Anti-vandal
Metal Case, Anti-vandal
FAQ About the XK7-R Keypad Reader
1. What is the difference between XK10-R and XK8-R?

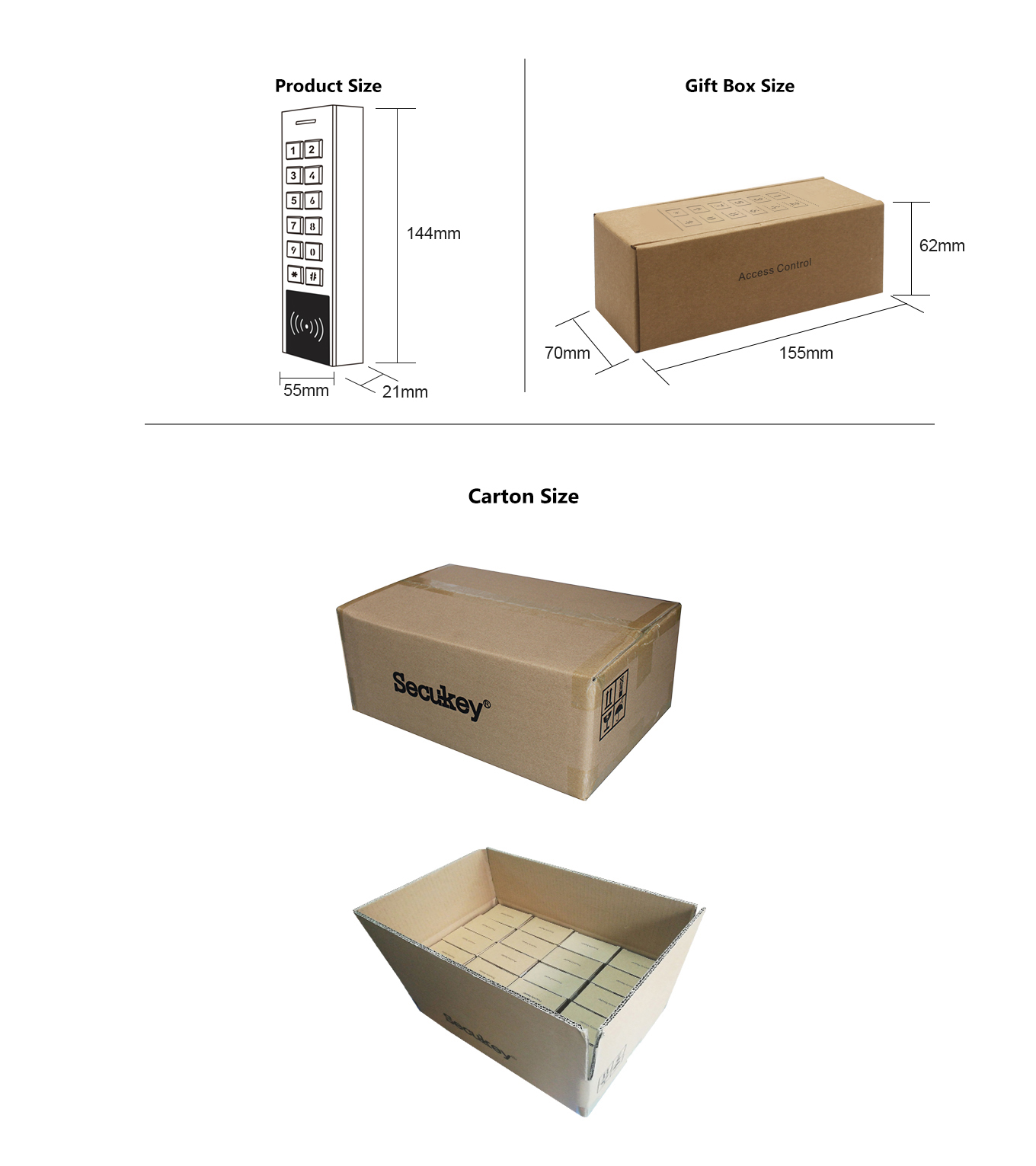

Both are ultra-slim Wiegand keypad readers. The XK10-R measures 144×55mm and the XK8-R 144×56mm — nearly identical, but they are positioned for different mounting scenarios: the XK10-R for narrow stile frames, the XK8-R for glass doors.

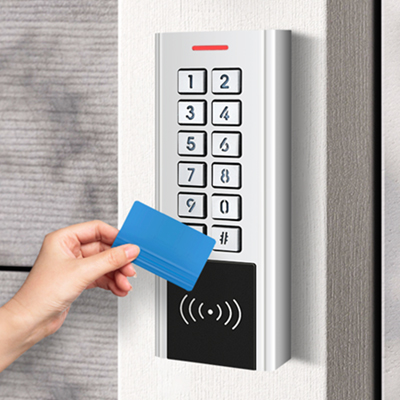

2. Which card types does the XK10-R support?
It reads 125KHz EM and HID cards plus 13.56MHz NXP Mifare, Mifare Plus, DesFire, Pro, UltraLight, Class 4K, NFC and CPU cards.
