XK9-R
Compact Wiegand Keypad Reader - EM/HID/Mifare, IP67 Metal
Waterproof, conforms to IP67
Metal Case, anti-vandal
Wiegand 26~44, 56, 58 bits output
Programmable Keypad Transmission: 4 bits, 8bits or virtual card number format
Card Type: 125KHz Hid & EM cards, 13.56MHz NXP Mifare, Mifare Plus, DesFire, Mifare Pro, Mifare UltraLight, Mifare Class 4K, NFC and CPU cards
Reading range: 1~4cm
External LED Control & External Buzzer Control
Sales Inquiry
What is the XK9-R compact Wiegand keypad reader?
XK9-R is a Wiegand output keypad, with integrated proximity reader.
It can read 125KHz EM & HID cards and 13.56MHz Mifare Cards.
Because of waterproof, it can be mounted either indoor or outdoor in harsh environments.
It can read 125KHz EM & HID cards and 13.56MHz Mifare Cards.
Because of waterproof, it can be mounted either indoor or outdoor in harsh environments.
3 in 1 Universal Keypa
Identifies 125KHz EM+HID &
13.56MHz Mifare Card
Manually programmable
Wiegand format (26~44, 56,
58bits)
Wiegand format (26~44, 56,
58bits)

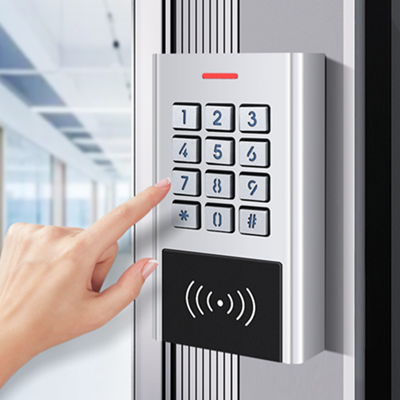

Keypad Transmission format:
4bits (8bits and 10bits virtual
card number can be set)
4bits (8bits and 10bits virtual
card number can be set)

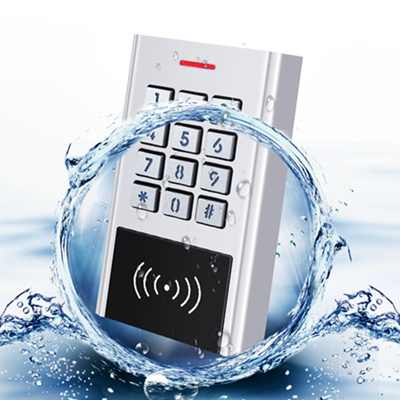

Waterproof, IP67
Metal Case, Anti-vandal
Metal Case, Anti-vandal
FAQ About the XK9-R Keypad Reader
1. What is the difference between XK9-R and XK7-R?

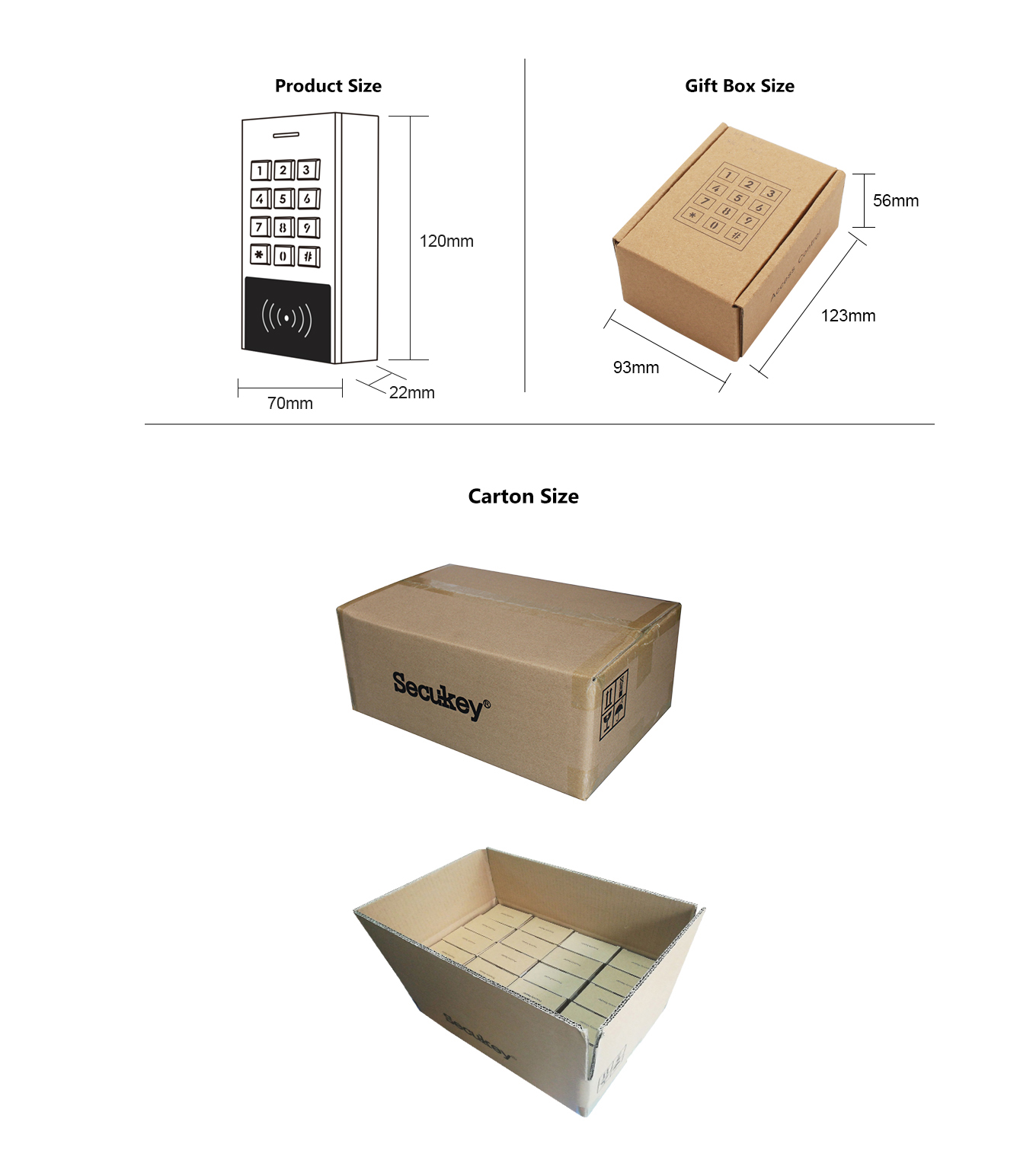

Both are Wiegand keypad readers with the same card support and IP67 rating. The XK9-R has a 120×70mm body, slightly narrower than the XK7-R (115×76mm), offering a different fit for standard door frames and mounting positions.

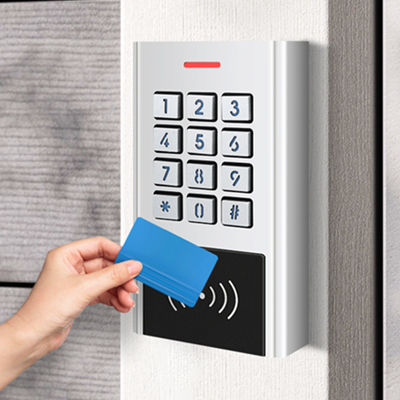

2. Which card types does the XK9-R support?
It reads 125KHz EM and HID cards plus13.56MHz NXP Mifare, Mifare Plus, DesFire, Pro, UltraLight, Class 4K, NFC and CPU cards. This single keypad reader covers nearly every credential format used in access control.
