CR9-RX
EM & Mifare Wiegand Reader
Waterproof, Conforms to IP67
Wiegand Format Adjustable: EM 26/24/44 Bits, Mifare 26/32/34/58 Bits, HID Auto-Recognize
Card Type: HID, EM and Mifare Cards (4-byte & 7-byte), 13.56MHz NXP Mifare, Mifare Plus, DesFire, Mifare Pro, UltraLight, Class 4K, NFC and CPU Cards
Reading Range: 3~8cm
External LED Control & External Buzzer Control
Plastic Housing with IP67 Waterproof Rating
Wide Operating Range: -40°C to 60°C
Sales Inquiry
What is the CR9-RX EM/Mifare Wiegand reader?
The S9-RX reader is an advanced 125KHz & 13.56MHz technology proximity reader.
Because of metal case anti-vandal and waterproof, it can be mounted either indoor or outdoor in harsh environment.
Because of metal case anti-vandal and waterproof, it can be mounted either indoor or outdoor in harsh environment.
Features of plastic IP66 proximity card reader
Read 125KHz EM/ HID card,
13.56MHz Mifare cards
13.56MHz Mifare cards

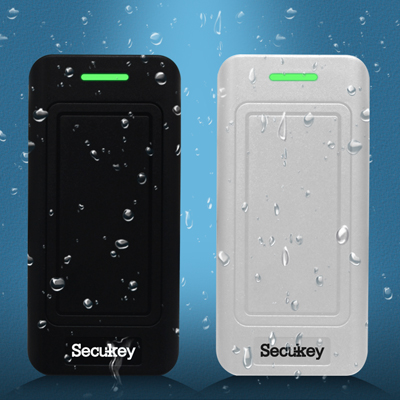

Waterproof, IP67
EM: 26bits
Mifare: 34bits for 4bytes, 58bits for 7 bytes
(26~44bits,56bits, 58bits for optional)
HID: Automatically Recognize
Mifare: 34bits for 4bytes, 58bits for 7 bytes
(26~44bits,56bits, 58bits for optional)
HID: Automatically Recognize

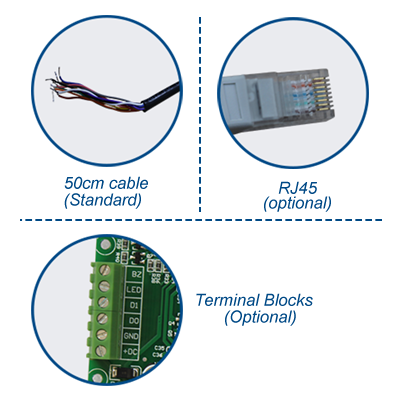

3 Kinds of Interface
FAQ About the CR9-RX Wiegand Reader
1. Which card types does the CR9-RX Wiegand reader support?
The CR9-RX reads HID, EM and Mifare cards (4 bytes & 7 bytes), including 13.56MHz NXP Mifare, Mifare Plus, DesFire, Mifare Pro, UltraLight, Class 4K, NFC and CPU cards. One reader covers nearly every credential format used in commercial access control projects.
2. How do I adjust the Wiegand output format?
The Wiegand format is adjustable to match your controller. EM cards output 26, 24 or 44 bits; Mifare cards output 26, 32, 34 or 58 bits; and HID card formats are recognized automatically. This flexibility allows the CR9-RX to work with both legacy and modern access controllers.
3. What is the reading range and is it suitable for outdoor use?
The CR9-RX offers a 3~8cm reading range for fast, convenient card presentation. Its plastic housing conforms to IP67 waterproof rating and supports external LED and buzzer control, making it suitable for outdoor gates and building entrances.
