Sboard 3
Mini Single Door Access Controller 1000 Users, 12V DC
1000 users, user data can be transferred
Multi access modes: Card, Card or PIN, Card with PIN and multi Cards/PINs
Can connect with any reader with Wiegand 26~44, 56, 58 bits output
Compatible with keypad readers that have 4bits or 8bits (ASCII) output
Can connect with external alarm and door contact
Mini size for easy installation in tight spaces
Adjustable relay output time from 0 to 300 seconds (default is 5 seconds)
Can connect with an external alarm and a door contact sensor
Sales Inquiry
What is Sboard 3 access controller and how does it work with Wiegand readers?
The Sboard-Ill is a mini size single door access control board with Wiegand 26~44,56,58 bits input, and it can work with external alarm.
What are the key features of Sboard 3 access controller?

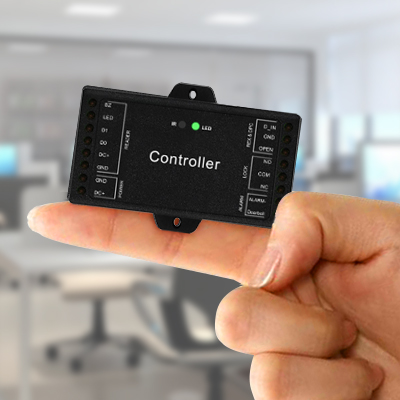

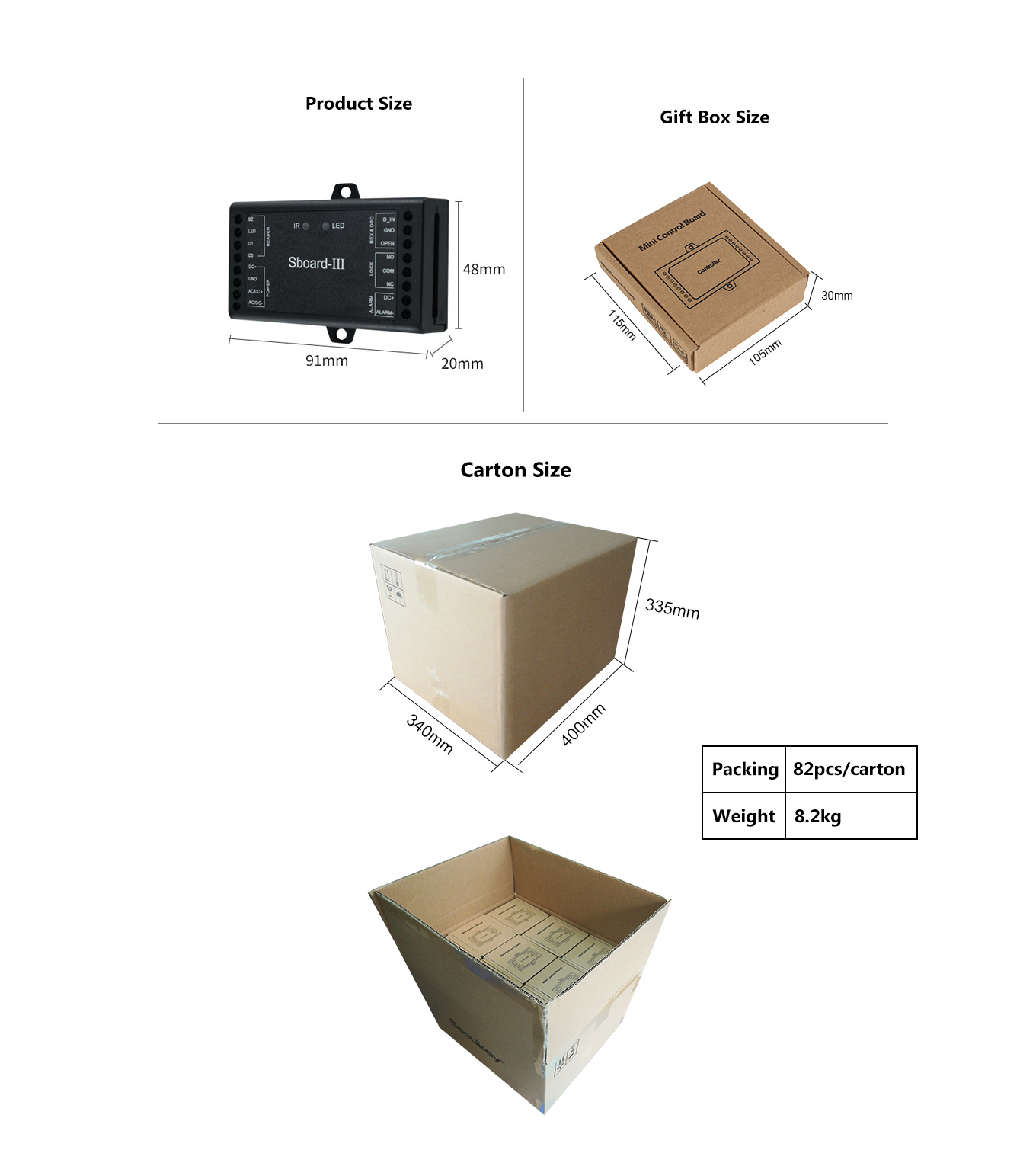

Mini Size:91*20*48mm

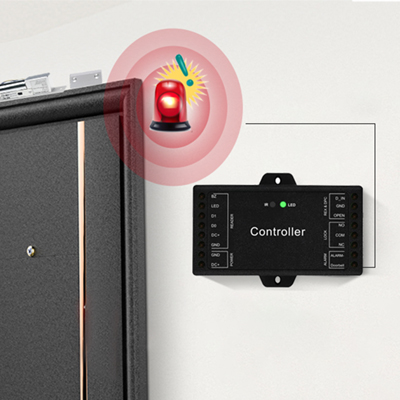

The alarm signal can be sent
to external alarm hardware
to external alarm hardware
User Capacity 1000 Users

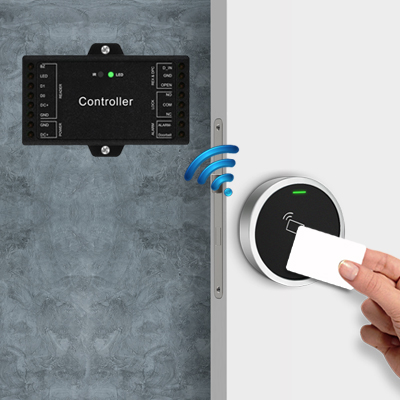

Can work with any wiegand
26~44,56,58bits readers
26~44,56,58bits readers
FAQ of Mini Controller
How many users can the Sboard Mini Controller support?
The controller supports 1,000 local users . Local users can access via connected Wiegand readers.
What Wiegand formats are compatible with this mini controller?
It accepts Wiegand 26–44, 56, and 58 bits input. This makes it compatible with virtually any Wiegand reader on the market, including EM, HID, Mifare, and multi-frequency readers from Secukey or third-party brands.
What power supply does the Sboard-III WIFI require?
It operates on 12V DC with low standby current. The compact ABS housing measures L91 x W48 x D20 mm and weighs only 63g, making it easy to install inside a door frame or control box.
