S13-X EM+MF
Powerful Controller/Reader
1,000 card users
Card type: 125KHz EM +13.56MHz Mifare cards
Metal case, embedded design
Waterproof, conforms to IP67
Wiegand 26~44,56, 58 bits input & output

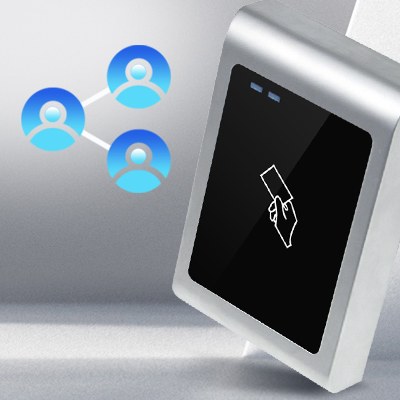

User data can be transferred by Wiegand line
Pulse mode, toggle mode
2pcs devices support interlock for two doors
Sales Inquiry
Description of Powerful Controller/Reader
The S13-X is is a durable outdoor RFID access controller with 10,000 user capacity, IP66 protection, anti-vandal design. Supporting 125KHz EM and 13.56MHz Mifare cards.
Features of Powerful Controller/Reader

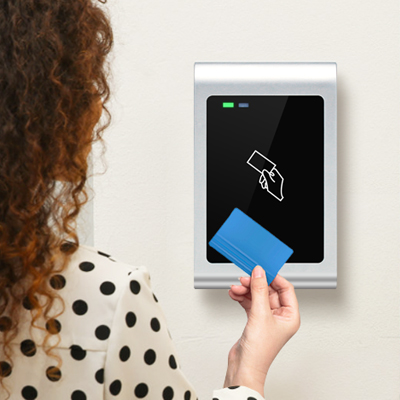

EM & Mifare Dual Frequency
10,000 User Capacity
User Data Backup
Convertibale Working Modes
FAQs of Powerful Controller/Reader
1. How many users can the S13-X RFID access controller support?
The S13-X RFID access controller supports up to 10,000 users, making it suitable for residential, commercial, and multi-user access control applications.
The S13-X RFID access controller supports up to 10,000 users, making it suitable for residential, commercial, and multi-user access control applications.
2. Is the S13-X suitable for outdoor access control?
Yes. The S13-X features a metal anti-vandal case and IP66 waterproof protection, making it suitable for outdoor access control installations.
Yes. The S13-X features a metal anti-vandal case and IP66 waterproof protection, making it suitable for outdoor access control installations.
3. What types of RFID cards does the S13-X support?
The S13-X supports 125KHz EM cards and 13.56MHz Mifare cards.
The S13-X supports 125KHz EM cards and 13.56MHz Mifare cards.
4. Can the S13-X work with another access controller?
Yes. The S13-X can be used as a Wiegand RFID reader, supporting Wiegand 26–44, 56, and 58-bit input and output for integration with compatible access control systems.
Yes. The S13-X can be used as a Wiegand RFID reader, supporting Wiegand 26–44, 56, and 58-bit input and output for integration with compatible access control systems.
