door loops
CP102

Stainless Steel Cable Protector for Access Control

Fixed head material: ABS
Pipe material: stainless steel

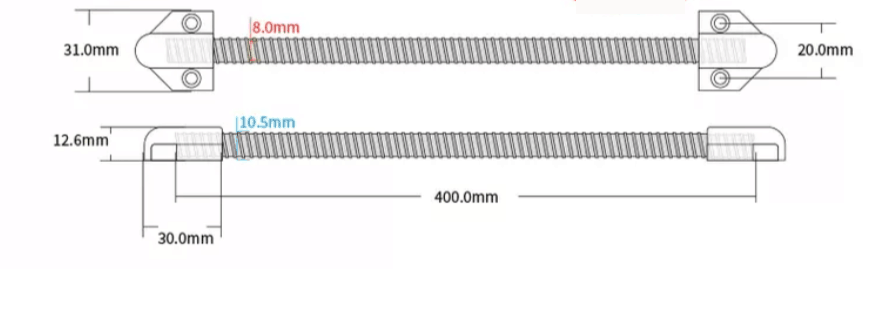

External diameter: 10mm
Inner diameter: 8mm
Standard length: 40cm (accept customized)
Suitable for installing electric locks, magnetic locks, alarm buttons, and other door-mounted equipment
Sales Inquiry

What is the CP102 Door Loop and How Does It Protect Cables?

CP102 is a cable protection sleeve specifically designed for access control systems. It features an ABS fixed head and a stainless steel pipe (external diameter: 10mm / inner diameter: 8mm), with a standard length of 40cm (customized lengths are available). It effectively protects wires and cables from external damage or harsh weather conditions. Suitable for installing electric locks, magnetic locks, alarm buttons, and other door-mounted equipment, it offers a secure, aesthetically pleasing, and convenient wiring solution.


FAQ About the CP102 Door Loop

1. What door types is this door loop compatible with?
The CP102 door loop is designed with a stainless steel flexible conduit and ABS fixed head, making it suitable for metal, glass, or wooden doors where wiring needs protection from repeated opening and closing. It accommodates standard 8-10mm cable bundles.

2. Can I order a custom length for specific door installations?
Yes. While the standard length is 40cm, the CP102 accepts customized lengths to fit non-standard door frames, oversized doors, or specialized mounting positions. Contact us with your required dimensions for a tailored solution.



 ​​
