CP151

14/11mm Stainless Steel Cable Protector for Access Control

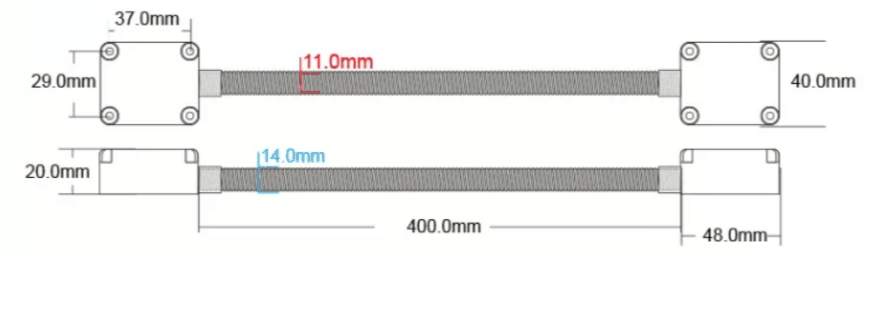

Fixed head material: ABS
Pipe material: stainless steel
External diameter: 14mm
Inner diameter: 11mm
Standard length: 40cm (accept customized)
Suitable for installing electric locks, magnetic locks, alarm buttons, and other door-mounted equipment
Sales Inquiry

What is CP151 and how does it protect door wiring?

CP151 is a cable protection sleeve specifically designed for access control systems. It features an ABS fixed head and a stainless steel pipe (external diameter: 14mm / inner diameter: 11mm), with a standard length of 40cm (customized lengths are available). It effectively protects wires and cables from external damage or harsh weather conditions. Suitable for installing electric locks, magnetic locks, alarm buttons, and other door-mounted equipment, it offers a secure, aesthetically pleasing, and convenient wiring solution.


FAQ About CP151 Door Loop

1. What is the advantage of the larger 14mm outer diameter?
The CP151 features an 11mm inner diameter stainless steel conduit, allowing it to accommodate thicker cable bundles or multiple wires than standard door loops. This is particularly useful for doors requiring additional conductors—such as electric strikes with feedback, magnetic locks with bond sensors, or readers with auxiliary I/O.

2. Is this door loop suitable for heavy-traffic commercial doors?
Yes. The stainless steel construction with 11mm internal clearance is designed for high-cycle applications like office main entrances, retail back doors, or apartment building access points, where durability and reliable wire protection are essential over thousands of open/close operations.




 ​​
