SUHF-1
Middle Range UHF Reader
Waterproof, IP65
Free demo and SDK
Stable reading distance: 1~5m
Frequency: 902~928MHz or customize other frequency
Support Protocol:ISO18000-6Bor ISO18000-6C(EPC GEN2)

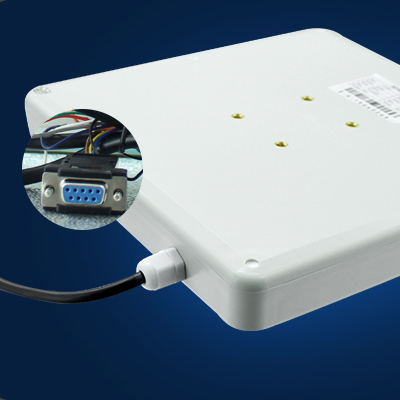

Communication interface: RS485,RS232,Wiegand26,Wiegand34,RJ45
Support checking Opening Record / Temporary Password
Working temperature:-40℃~+65℃

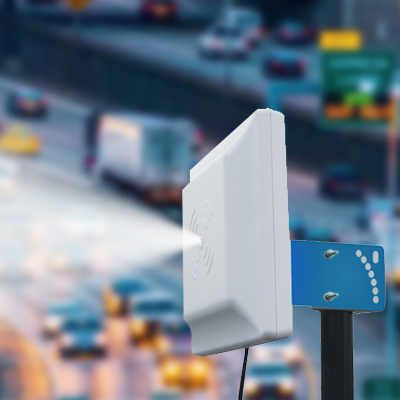

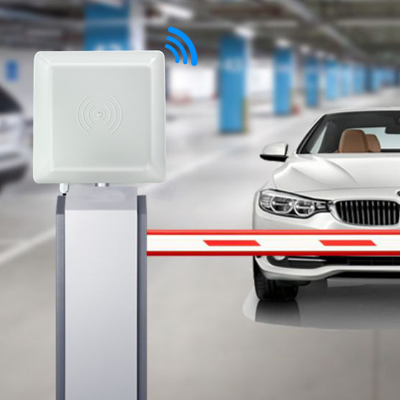

Suitable for Parking Control, Logistics, Warehouse, Manufacturing management,etc.
Sales Inquiry
Description of UHF Reader

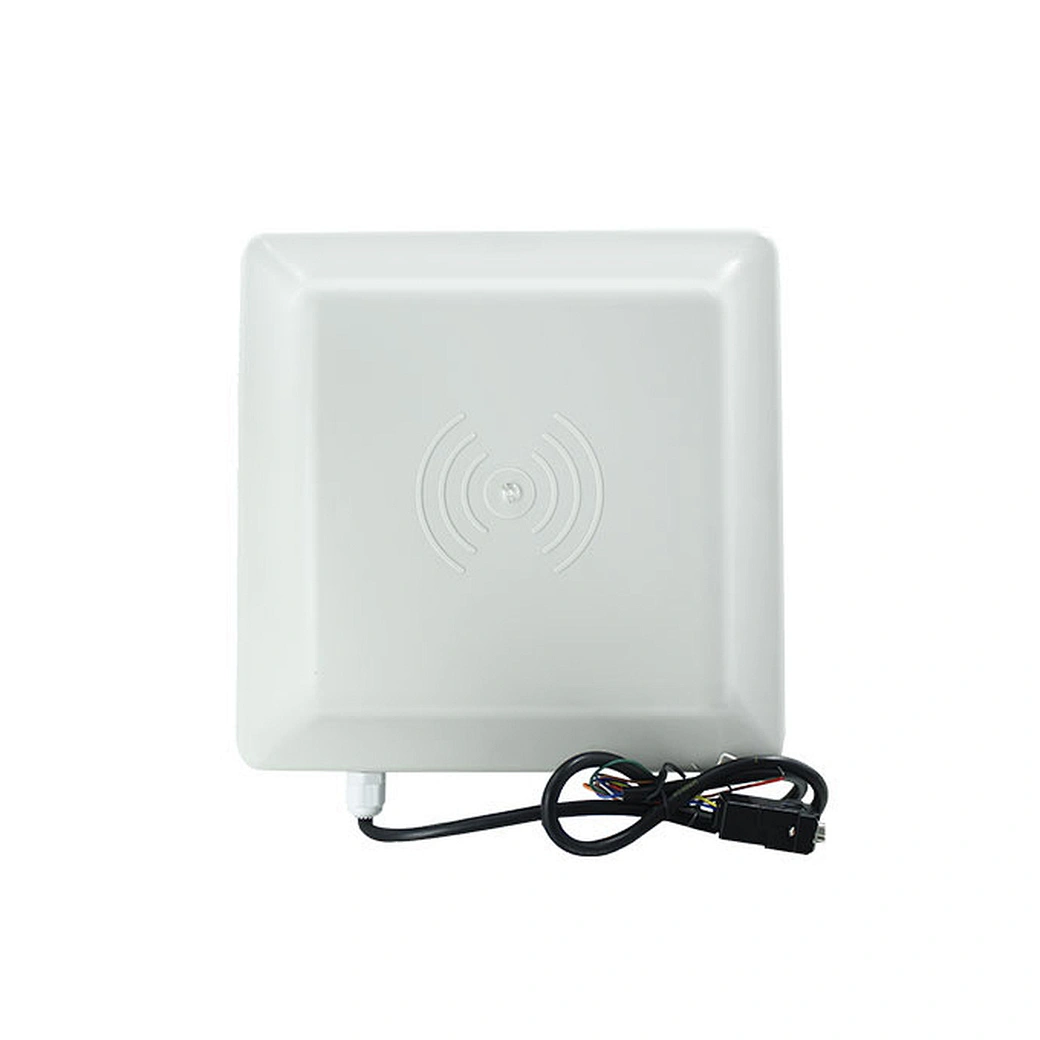

The SUHF-1 is a middle reading range, waterproof access control Reader.
Features of UHF Reader
Used for Parking Control, Logistics,Warehouse,Manufacturing management, etc.
Stable reading distance:1~5m
Waterproof IP65
Working temperature:-40℃ ~+65℃
Support Protocol: ISO18000-6B or ISO18000-6C(EPC GEN2)
Communication interface: RS485,RS232,Wiegand26,Wiegand34, RJ45
FAQs of UHF Reader
1. Which frequency bands does this reader support? Can it work in my country?
This reader supports multiple frequency bands to comply with different regional standards. The standard models offer National Standard (920~925MHz) for China and America Standard (902~928MHz) for the US and other FCC-regulated regions. We can also customize other frequencies to match the specific RFID regulations of your country. Additionally, the reader supports the ISO18000-6C (EPC GEN2) protocol, ensuring global compatibility with standard UHF tags. Please let us know your target market so we can provide the correct frequency configuration.
2. What communication interfaces are available?
The reader is designed to integrate easily with existing systems and offers multiple industrial interfaces, including:
- Wiegand (26-bit & 34-bit)
- RS232 & RS485
- RJ45 (Ethernet) for TCP/IP connectivity
This flexibility allows it to connect directly to most access control panels, PLCs, or network servers.
3. How stable is the 1~5m reading distance? Can I extend or adjust it?
The stable reading distance is 1 to 5 meters under typical conditions with standard passive UHF tags. However, the actual range is highly adjustable based on your needs:
Software Adjustment: The RF output power is adjustable from 0 to 30dBm via software, allowing you to fine-tune the read range.
Longer Range: If you need to extend the range beyond 5 meters, you can increase the output power to achieve up to 8 meters or more.
Environment & Tags: The maximum distance can vary depending on the type of tag used and environmental factors such as interference or obstacles.

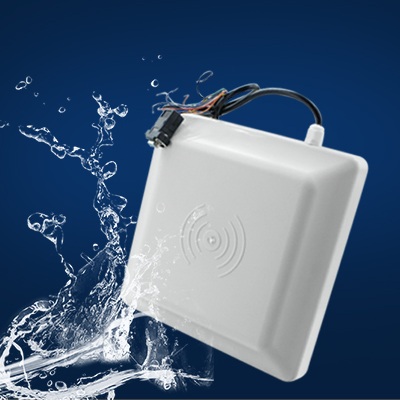

4. Is this reader suitable for outdoor use? What does the IP65 rating mean?
Yes, the reader is fully suitable for outdoor and harsh environments thanks to its IP65 waterproof rating. The IP65 rating means the enclosure is completely dust-tight (level 6) and protected against low-pressure water jets from any direction (level 5). This allows the reader to withstand heavy rain, splashing water, and dusty outdoor conditions, making it ideal for parking lot gates, loading docks, and perimeter access control points.
5. Does the reader come with development support? How do I integrate it with my system?
Yes, this reader comes with a free demo and SDK (Software Development Kit) to simplify integration. The SDK supports a wide range of programming environments and languages, including C++, C#, Java, Python, Linux, and Android on both x86 and ARM architectures. You can also download open-source demo software to test functionality and expedite custom application development.
