rfid access controller
S7-EM

Secukey rfid access controller, metal standalone, mini size

Metal case, anti-vandal
Waterproof, conforms to IP66
One relay, 2000 users, standalone
Card type: 125KHz EM card
Working temperature: -40°C ~ 60°C (-40°F ~ 140°F)
Pulse mode, toggle mode
Built in LDR for anti tamper
Card block enrollment

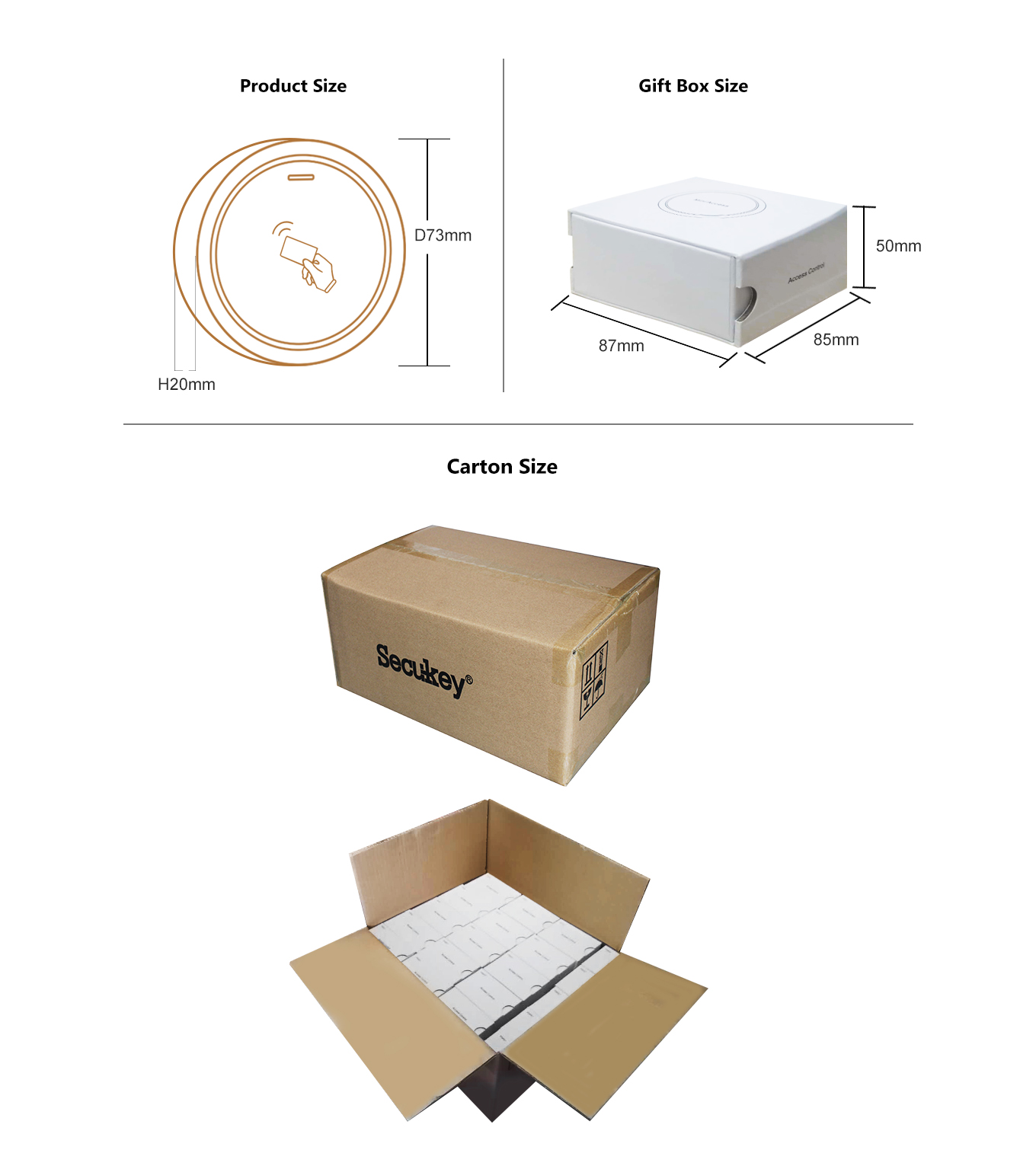

Mini size: Diameter: 73mm, Thickness: 20mm
Secukey rfid access controller, metal standalone, mini size
Secukey rfid access controller, metal standalone, mini size
Secukey rfid access controller, metal standalone, mini size
Sales Inquiry

Description of mini rfid access controller

The S7-EM is a compact, waterproof stand-alone programmable mini access control system that provides proximity entry.
The product unique feature is simple in design, easy operation, and high reliability.


Features of mini rfid access controller

mini rfid access controller
Mini Size:D73mmxH20mm
Waterproof, IP66
rfid access control reader
rfid card reader door access

Metal design, anti-vandal

FAQ of mini rfid access controller



1. How does mini rfid access controllerwork?

The S7-EM is a compact, waterproof stand-alone programmable mini access control system that provides proximity entry. The product unique feature is simple in design, easy operation, and high reliability. It supports master card enrollment, stores up to 2000 users, and provides relay output for door unlocking. It works in pulse/toggle mode with anti-tamper function, no need for extra controller.


2. Is mini rfid access controller suitable for outdoor use?

Yes. S7-EM features IP66 waterproof rating, zinc-alloy anti-vandal housing, and wide working temperature from -40℃ to 60℃. It is a durable outdoor standalone access control reader for gates and exterior doors.


3. What card type does mini rfid access controllersupport?

The S7-EM standalone access control only supports 125KHz EM proximity cards. It offers a 3–10cm reading distance and can manage up to 2000 users for simple and stable EM card access control.


4. Does mini rfid access controller support relay output adjustment?

Yes. The S7-EM standalone access control has one relay output (NO/NC/Common). The relay unlock time is adjustable from 0–99 seconds (default 5 seconds) and supports a maximum load of 2A for different locks.
