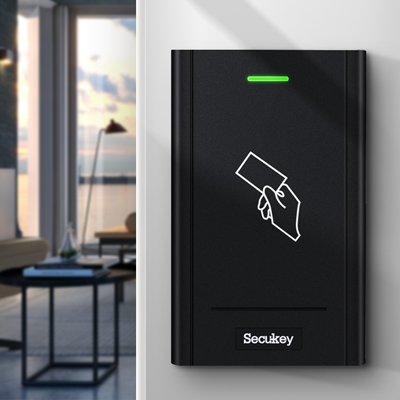

X5-RX
Waterproof Wiegand & OSDP Readers, EM, HID & Mifare Cards Compatible
OSDP reader, work with OSDP controller
Wiegand reader, work with wiegand controller(optional)

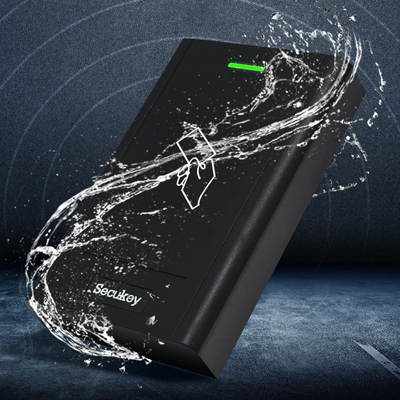

Waterproof, conforms to IP67

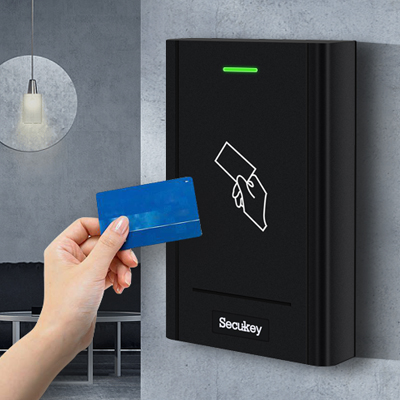

Card Type: 125KHz HID, EM & 13.56MHz NXP Mifare, Mifare Plus, DesFire, Mifare Pro, Mifare UltraLight, Mifare Class 4K, NFC and CPU cards
Sales Inquiry
Description of Wiegand & OSDP Readers
The device is a waterproof OSDP keypad reader, also with Wiegand 26~44, 56, 58bits output, can read 125KHz EM card, HID card &13.56MHz Mifare cards.
Features of Wiegand & OSDP Readers
OSDP Reader
Waterproof, Conforms to IP67
Multi card type,
125KHz & 13.56MHz
125KHz & 13.56MHz
FAQ of Wiegand & OSDP Readers
1. What are Wiegand and OSDP readers?
Wiegand readers communicate using the legacy Wiegand protocol (introduced in the 1980s) – a unidirectional, unencrypted 2-wire interface that sends credential data from reader to panel.
OSDP readers use the Open Supervised Device Protocol – a bidirectional, encrypted RS-485 protocol that allows readers and panels to exchange commands, status, and configuration data. Most modern access control readers support both protocols.
2. Can I run OSDP and Wiegand on the same cable?
No. Wiegand and OSDP use different electrical signaling and cannot share wires.
3. What is this Wiegand and OSDP reader's Secure Channel (encryption)?
OSDP Secure Channel Protocol (SCP) provides AES-128 encryption for all communication between reader and panel
