XK5-RX
Waterproof OSDP Keypad Reader, EM+HID+Mifare Card Type
OSDP reader, work with OSDP controller
Wiegand reader, work with wiegand controller(optional)
Waterproof, conforms to IP67
Card Type: 125KHz HID, EM & 13.56MHz NXP Mifare, Mifare Plus, DesFire, Mifare Pro, Mifare UltraLight, Mifare Class 4K, NFC and CPU cards
PIN output: 4 bits, 8 bits or virtual card number
Sales Inquiry

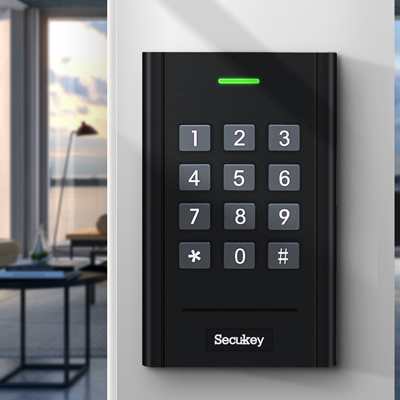

Description of OSDP Keypad Reader
The device is a waterproof OSDP keypad reader, also with Wiegand 26~44, 56, 58bits output, can read 125KHz EM card, HID card &13.56MHz Mifare cards.
Features of OSDP Keypad Reader
OSDP Reader

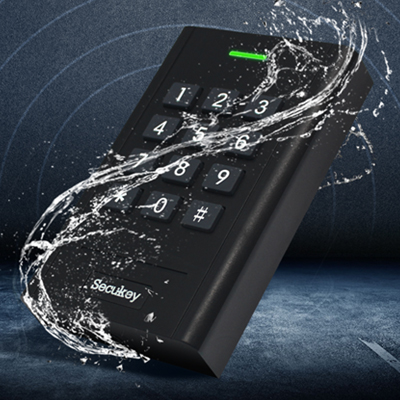

Waterproof, Conforms to IP67

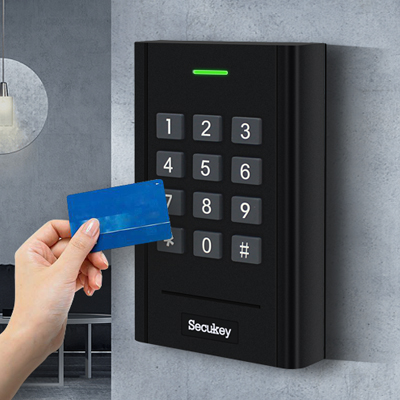

Multi card type,
125KHz & 13.56MHz
125KHz & 13.56MHz
PIN output: 4 bits, 8 bits or virtual card number
FAQ of OSDP Keypad Reader
1. Can I connect multiple OSDP readers to one controller port?
A: Yes. OSDP supports multi-drop configurations:
Maximum 2 readers per RS-485 port on most controllers
Readers are paired as Primary and Secondary sharing the same door
Each reader requires a unique OSDP address
Both readers control the same lock, REX, and door contact
Example: 4 OSDP readers on one sub-controller:
Reader port 1: Address 0 (In), Address 2 (Out/Secondary)
Reader port 2: Address 1 (In), Address 3 (Out/Secondary)
2. What baud rates of this OSDP Keypad reader can support?
This readder can set baud rate with 4800, 9600, 14400, 19200, 38400, 56000, 57600, 115200, 128000.
