wiegand card reader
S9-RX

Dual-Frequency Metal Wiegand Reader - 125kHz & 13.56MHz

Metal Case, anti-vandal
Waterproof, conforms to IP66
External LED Control & External Buzzer Control
Reading range: 3~8cm
Wiegand Format:EM: 26 bits Mifare: 34/58 bits (32/56 bits optional) HID: 26 bits
External LED Control & External Buzzer Control
Card Type: 125KHz Hid & EM cards, 13.56MHz NXP Mifare, Mifare Plus, DesFire, Mifare Pro, Mifare UltraLight, Mifare Class 4K, NFC and CPU cards
Dual-Frequency Metal Wiegand Reader - 125kHz & 13.56MHz
Dual-Frequency Metal Wiegand Reader - 125kHz & 13.56MHz
Sales Inquiry

Why can this metal anti-vandal reader be installed both indoors and outdoors?

The S9-RX reader is an advanced 125KHz & 13.56MHz technology proximity reader.
Because of metal case anti-vandal and waterproof it can be mounted either indoor or outdoor in harsh environment.


Key features of S9-RX dual-frequency proximity reader

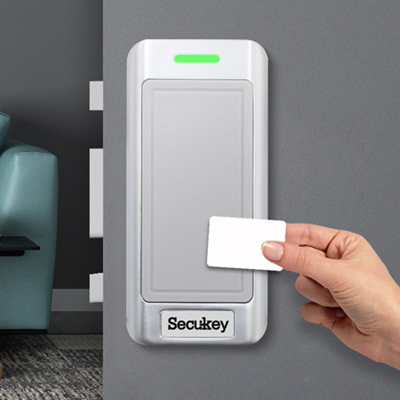

S9-RX wiegand card reader reads 125kHz EM/HID cards and 13.56MHz Mifare cards

Read 125KHz EM/HID card,
13.56MHz Mifare cards

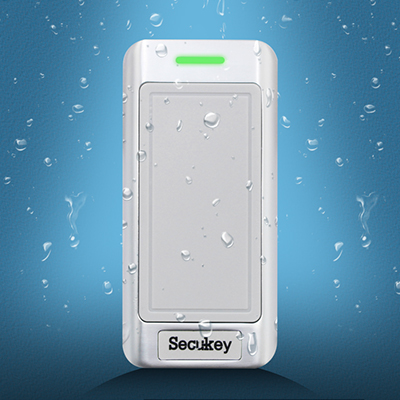

Waterproof, conforms to IP67
Waterproof IP67 rating for S9-RX wiegand card reader

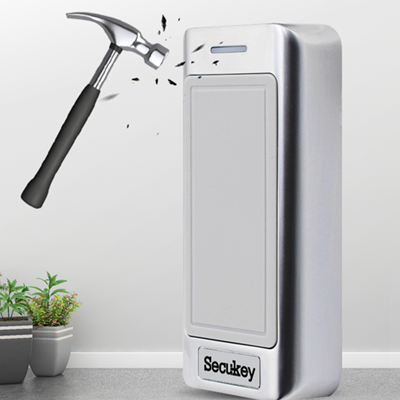

Metal anti-vandal housing of S9-RX wiegand card reader

Metal, anti-vandal

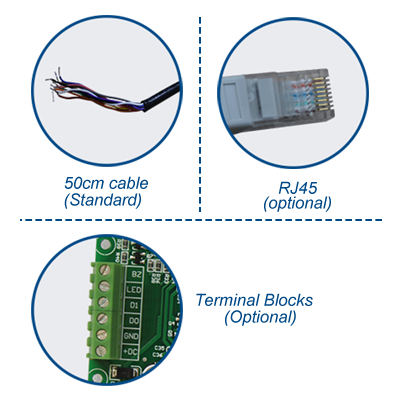

3 Kinds of Interface
Three interface options: cable, RJ45 connector and terminal block on S9-RX wiegand card reader


wiegand card reader Wiegand output: EM 26 bits, Mifare 34 or 58 bits, HID auto-recognize

EM:26 bits
Mifare: wiegand 34 bits (4 bytes
card format) or 58 bits (7 byts card format)
HID: Automatically Recognize

FAQ : S9-RX reader compatibility, output formats and installation

1. Can the S9-RX read both 125kHz proximity cards and 13.56MHz smart cards?
Yes. The S9-RX is a dual-frequency RFID reader that supports 125kHz (EM & HID) and 13.56MHz (MIFARE, DesFire, NFC, CPU cards) in one unit. It allows you to migrate from legacy proximity cards to high-security smart cards without changing readers.

2. Is this reader suitable for outdoor and high-security installations?
Absolutely. The S9-RX features a metal anti-vandal case with IP66 waterproof rating, making it ideal for outdoor gates, perimeter fencing, or industrial sites where durability and weather resistance are required.
