S7-R EM

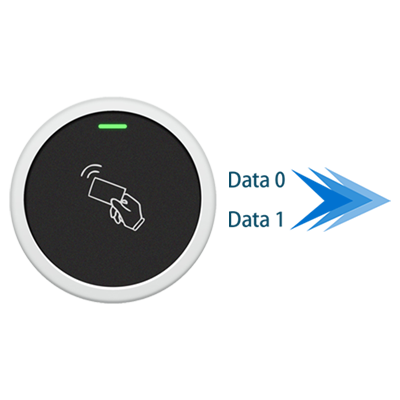

Metal Mini rfid proximity card reader
Metal Case, anti-vandal
Waterproof, conforms to IP66
Wiegand 26~37 bits output (default: 26bits)
Card type: 125KHz EM card
Reading range: 3~8cm
External LED Control & External Buzzer Control
Optional version(S7-R MF): Read 13.56MHz Mifare card
Sales Inquiry
Description of Metal Mini rfid proximity card reader
The reader is a metal case anti-vandal proximity reader.
Because of waterproof, it can be mounted either indoor or outdoor in harsh environments.
Because of waterproof, it can be mounted either indoor or outdoor in harsh environments.
Features of Metal Mini rfid proximity card reader

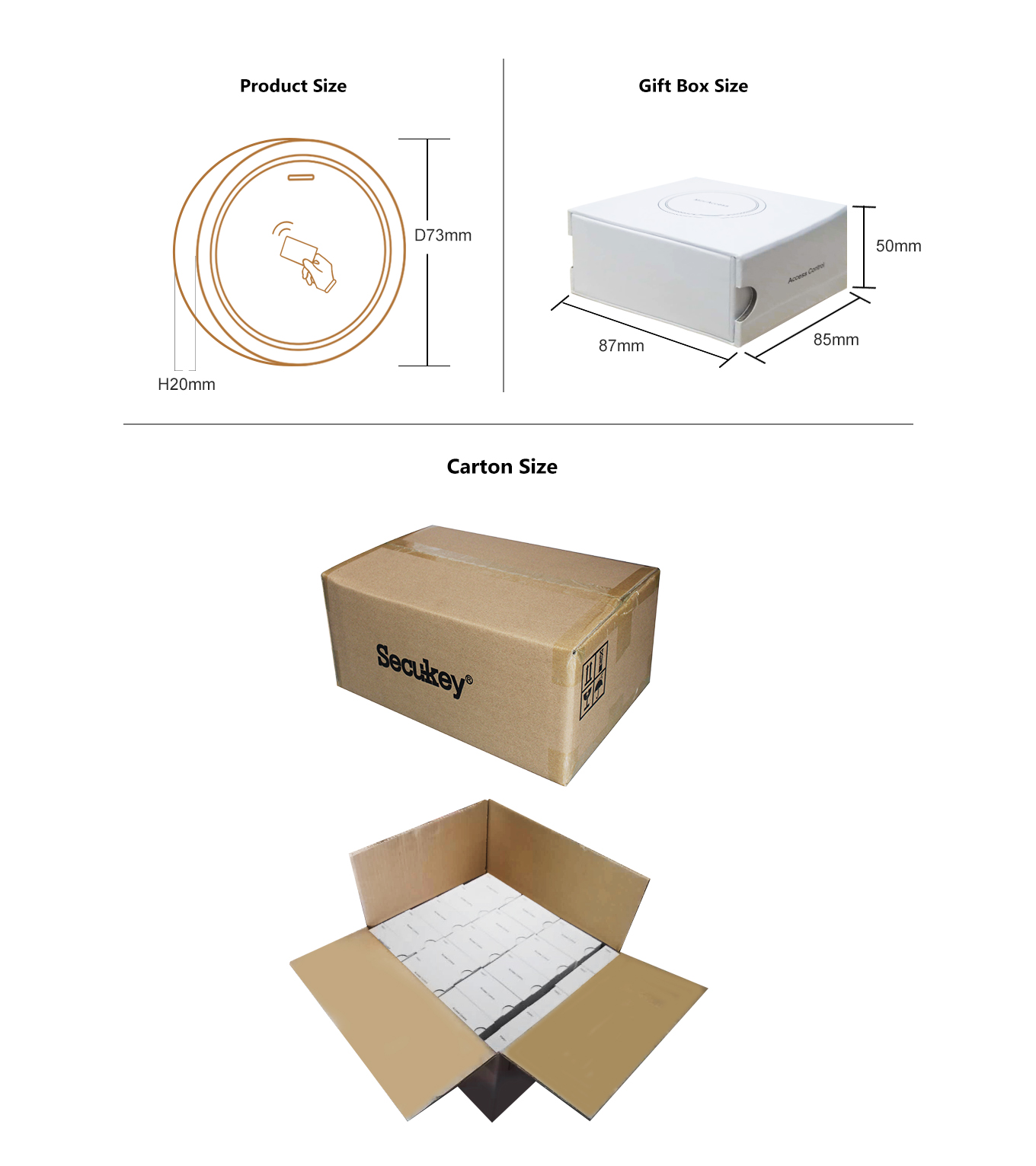

Mini Size:D73mmxH20mm
Waterproof, IP66
Metal design, anti-vandal
Wiegand 26~37 bits
default 26bits
FAQ of Metal Mini rfid proximity card reader
1. What is the output format of Mini rfid proximity card reader?
S7-R EM is a 125KHz EM card Wiegand reader with default 26-bit output, and supports Wiegand 26–37 bits. It can connect to any access control panel and also offers optional 13.56MHz Mifare version.

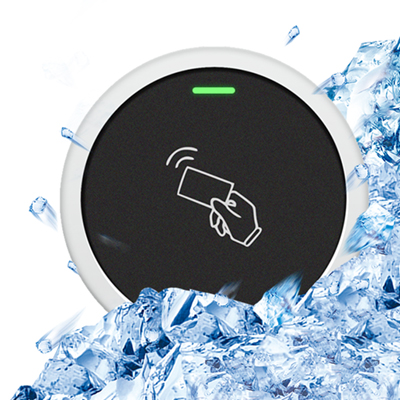

2. Can Mini rfid proximity card reader be used outdoors?
Yes. The S7-R EM reader is a metal case anti-vandal proximity reader, and it has IP66 waterproof, metal anti-vandal structure, and stable performance in -40℃ to 60℃. It is designed for both indoor and outdoor access control applications.
3. What card type does rfid access card reader support?
The S7-R EM Wiegand reader supports 125KHz EM cards with a 3–8cm reading distance. It also has an optional S7-R MF version for 13.56MHz Mifare cards to meet different access control needs.
4. Does mini rfid reader support external LED and buzzer?
Yes. The S7-R EM Wiegand card reader supports external LED control and external buzzer control, providing clear status feedback and improving the usability of the access control system.
