125KHz 13.56MHz Wiegand Reader
S6-RX

Metal 125KHz & 13.56MHz Wiegand Reader

Dual Frequency: 125KHz EM/HID + 13.56MHz Mifare Series
Full Mifare Support: NXP Mifare, Mifare Plus, DesFire, Mifare Pro, Mifare UltraLight, Mifare Class 4K, NFC and CPU Cards
Metal Anti-Vandal Case with IP67 Waterproof Rating
Wiegand 26~58 Bit Programmable Output
Wide Operating Range: -40°C to 60°C
External LED Control & External Buzzer Control
Reading Range 1~4cm for Fast and Stable Recognition
Metal 125KHz & 13.56MHz Wiegand Reader
Metal 125KHz & 13.56MHz Wiegand Reader
Metal 125KHz & 13.56MHz Wiegand Reader
Sales Inquiry

What is the S6-RX dual frequency Wiegand reader?

The S6-RX reader is an advanced 125KHz & 13.56MHz technology proximity reader.
Because of metal case anti-vandal and waterproof, it can be mounted either indoor or outdoor in harsh environment.

Key Features of the S6-RX Dual Frequency Wiegand Reader

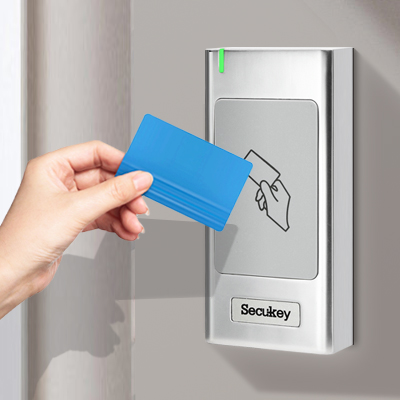

S6-RX reads 125KHz EM/HID and 13.56MHz Mifare, DesFire, NFC and CPU cards


Card Type: EM+HID+Mifare




Wiegand 26~37bits(default 26bits)
Reader with Wiegand output

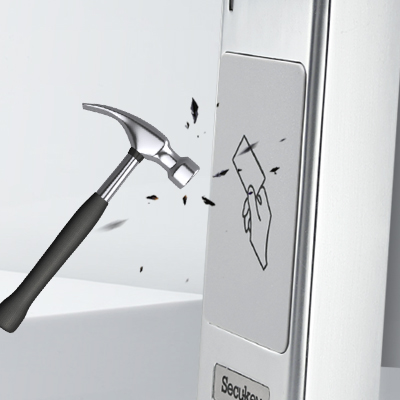

S6-RX dual frequency Wiegand reader with metal anti-vandal case

Metal design, anti-vandal

Waterproof, IP67

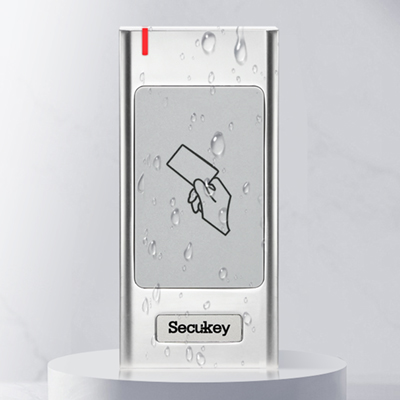

IP67 waterproof rating on S6-RX metal proximity reader



FAQ About the S6-RX Reader

Which card types does the S6-RX Wiegand reader support?
It reads 125KHz EM and HID cards plus 13.56MHz NXP Mifare, Mifare Plus, DesFire, Mifare Pro, UltraLight, Class 4K, NFC and CPU cards. This single reader covers nearly every credential format used in commercial and industrial access control projects.

Is the S6-RX suitable for outdoor installation?
Yes. Its metal anti-vandal case carries an IP66 waterproof rating and operates from -40°C to 60°C, so it performs reliably on outdoor gates, perimeter doors, and industrial sites exposed to rain, dust, and temperature extremes.

How does external LED and buzzer control work?
The S6-RX provides dedicated terminals for external LED control and external buzzer control, letting the host controller drive visual and audible feedback directly. This is useful in high-noise areas or where strict verification feedback is required.
